Stainless Steel Open Head Drum

Home / Products / Stainless Steel Open Head Drum

Technical Specifications

Sizes Available:

5L, 10L, 20L, 30L, 40L, 60L, 75L, 100L, 120L, 150L, 213L, 400L

Available in Grade:

SS304 / SS316

Thickness:

1.00mm (19SWG) & 1.2mm (18SWG)

UN Approved:

1A1/X220/S/IND

Closures:

OPTIONAL ”2” & ¾” TRI-SURE ON TOP LID

Internal Finish:

2B / BA (Mirror)

External Finish:

2B/Matt

Closure Rings:

BOLT TYPE / CLAMP TYPE

Types:

Not Applicable

PLEASE FIND BELOW THE DETAILS OF SIZES AND VARIABLES AS FOLLOWS

CAPACITY	GRADE	THICKNESS	HEIGHT	DIAMETER	INTERNAL FINISH	EXTERNAL FINISH	CLOSURES	UN APPROVAL	HANDLES
5L	SS304 / SS316	0.8MM / 1.0MM	170MM	305MM	2B / BA	MATT	2″ & 3/4″	ON REQUEST	TOP HANDLE
10L	SS304 / SS316	0.8MM / 1.0MM	210MM	305MM	2B / BA	MATT	2″ & 3/4″	ON REQUEST	TOP HANDLE
20L	SS304 / SS316	0.8MM / 1.0MM	350MM	305MM	2B / BA	MATT	2″ & 3/4″	ON REQUEST	TOP/ SIDE HANDLE
30L	SS304 / SS316	0.8MM / 1.0MM	510MM	305MM	2B / BA	MATT	2″ & 3/4″	ON REQUEST	TOP/ SIDE HANDLE
40L	SS304 / SS316	0.8MM / 1.0MM	390MM	405MM	2B / BA	MATT	2″ & 3/4″	ON REQUEST	TOP/ SIDE HANDLE
60L	SS304 / SS316	0.8MM / 1.0MM	600MM	405MM	2B / BA	MATT	2″ & 3/4″	ON REQUEST	TOP/ SIDE HANDLE
75L	SS304 / SS316	1.0MM	530MM	455MM	2B / BA	MATT	2″ & 3/4″	ON REQUEST	SIDE HANDLES
100L	SS304 / SS316	1.0MM	700MM	455MM	2B / BA	MATT	2″ & 3/4″	ON REQUEST	SIDE HANDLES
120L	SS304 / SS316	1.0MM	800MM	455MM	2B / BA	MATT	2″ & 3/4″	ON REQUEST	ON REQUEST
150L	SS304 / SS316	1.0MM / 1.2MM	700MM	585MM	2B / BA	MATT	2″ & 3/4″	ON REQUEST	ON REQUEST
213L	SS304 / SS316	1.0MM / 1.2MM	890MM	585MM	2B / BA	MATT	2″ & 3/4″	1A2/S223/ IND	NOT AVAILABLE
400L	SS304 / SS316	1.2MM	970MM	780MM	2B	MATT	N/A	NOT AVAILABLE	NOT AVAILABLE

Applications

Stainless steel open head drums are used in various industries, including chemical and petrochemical, food and beverage, pharmaceuticals and cosmetics, manufacturing and industrial applications, and environmental and waste management.

Manufacturing Technology

Durability and Longevity: Exceptional durability due to resistance to corrosion, rust, and chemical damage.
Versatility: Suitable for a variety of applications.
Safety: Resistance to impact and puncture ensures protection during transportation and storage.
Hygiene and Cleanliness: Ideal for industries where hygiene is paramount, such as food and pharmaceuticals.
Closing Ring in Bolt Type & Clamp Type/ Also available Heavy Duty Clamp Ring for Liquid Transport

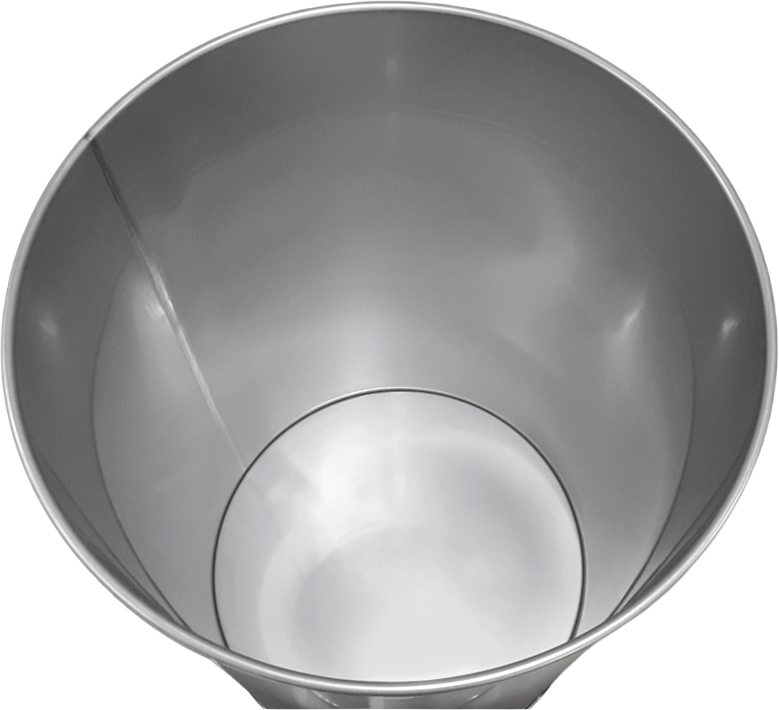

Shell Welded Using Plasma Weld Technology, Free from any Residue Particles.
Bottom Triple Seamed with Shell and Resistance Welded, Eliminating usages of Sealing Compounds which contaminates the Packaging material.
