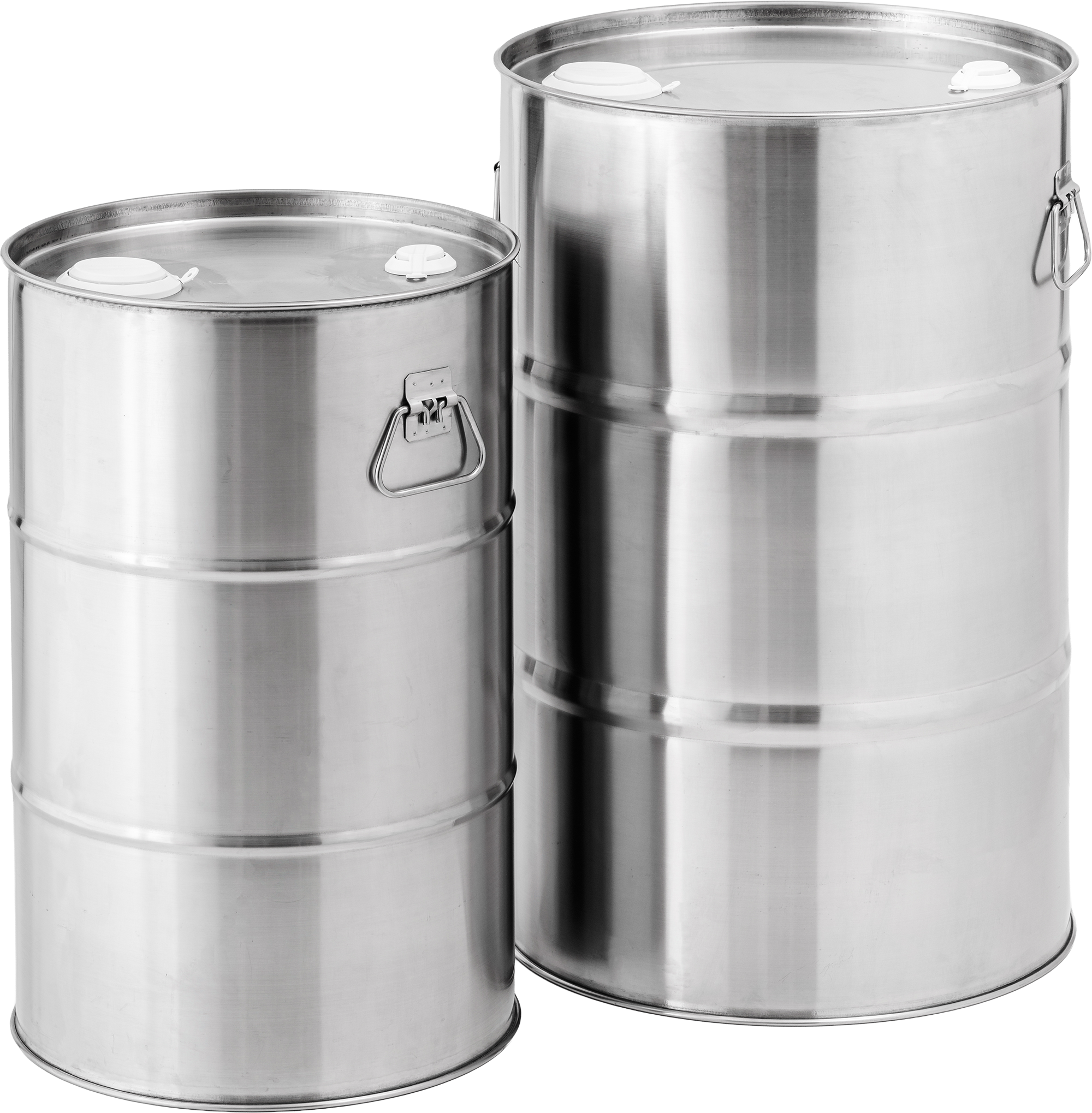

Stainless Steel Closed Head Drum

Home / Products / Stainless Steel Closed Head Drum

Technical Specifications

Sizes Available:

5L, 10L, 20L, 30L, 40L, 60L, 75L, 100L, 120L, 150L, 216L

Available in Grade:

SS304 / SS316

Thickness:

0.8mm / 1.0mm / 1.2mm

UN Approved:

1A1/1.6/250/IND

Closures:

STANDARD 2” & ¾” TRI-SURE

Internal Finish:

2B / BA ( MIRROR )

External Finish:

2B / MATT

Closure Rings:

AVAILABLE IN PE (STANDARD) , PTFE , VITON

Types:

Not Applicable

PLEASE FIND BELOW THE DETAILS OF SIZES AND VARIABLES AS FOLLOWS

CAPACITY	GRADE	THICKNESS	HEIGHT	DIAMETER	INTERNAL FINISH	EXTERNAL FINISH	CLOSURES	UN APPROVAL	HANDLES
5L	SS304 / SS316	0.8MM / 1.0MM	170MM	305MM	2B / BA	MATT / 2B	2″ &/Or 3/4″	1A1/X1.6/350/IND	TOP HANDLE
10L	SS304 / SS316	0.8MM / 1.0MM	210MM	305MM	2B / BA	MATT / 2B	2″ &/Or 3/4″	1A1/X1.6/350/IND	TOP HANDLE
20L	SS304 / SS316	0.8MM / 1.0MM	350MM	305MM	2B / BA	MATT / 2B	2″ &/Or 3/4″	1A1/X1.6/350/IND	TOP/ SIDE HANDLE
30L	SS304 / SS316	0.8MM / 1.0MM	510MM	305MM	2B / BA	MATT / 2B	2″ &/Or 3/4″	1A1/X1.6/400/IND	TOP/ SIDE HANDLE
40L	SS304 / SS316	0.8MM / 1.0MM	390MM	405MM	2B / BA	MATT / 2B	2″ &/Or 3/4″	1A1/X1.6/350/IND	TOP/ SIDE HANDLE
60L	SS304 / SS316	0.8MM / 1.0MM	600MM	405MM	2B / BA	MATT / 2B	2″ & 3/4″	1A1/X1.6/350/IND	TOP/ SIDE HANDLE
75L	SS304 / SS316	1.0MM	530MM	455MM	2B / BA	MATT / 2B	2″ & 3/4″	1A1/X 1.6/250/IND	SIDE HANDLES
100L	SS304 / SS316	1.0MM	700MM	455MM	2B / BA	MATT / 2B	2″ & 3/4″	1A1/X 1.6/250/IND	SIDE HANDLES
120L	SS304 / SS316	1.0MM	800MM	455MM	2B / BA	MATT / 2B	2″ & 3/4″	1A1/X 1.6/250/IND	NOT AVAILABLE
150L	SS304 / SS316	1.0MM / 1.2MM	700MM	585MM	2B / BA	MATT / 2B	2″ & 3/4″	1A1/X 1.6/250/IND	NOT AVAILABLE
216L	SS304 / SS316	1.0MM / 1.2MM	890MM	585MM	2B / BA	MATT / 2B	2″ & 3/4″	1A1/X 1.6/250/IND	NOT AVAILABLE

Applications

Due to their versatility and robust features, stainless steel closed head drums are used in a wide range of industries, including:

Chemical Industry
Food and Beverage Industry
Pharmaceutical Industry
Petrochemical Industry
Cosmetics Industry

Whether dealing with hazardous chemicals, sensitive pharmaceuticals, or food-grade liquids, Our drums provide a robust and reliable solution that meets the highest standards of safety and efficiency.

Manufacturing Technology

Shell Welded Using Plasma Weld Technology, Free from any Residue Particles.
Top / Bottom Triple Seamed with Shell and Resistance Welded, Eliminating usages of Sealing Compounds which contaminates the Packaging material.
Closed Head Design: secure seal, ideal for storing liquids and preventing any risk of spillage or contamination.
Corrosion Resistance: Stainless steel is inherently resistant to rust and corrosion, crucial for storing chemicals, oils, and other corrosive substances.
Strength and Durability: Stainless steel closed head drums can withstand significant mechanical stress, making them suitable for transport and storage in demanding environments.
Hygienic Surface: The smooth, non-porous surface of stainless steel prevents the accumulation of bacteria and other contaminants, making these drums suitable for food and pharmaceutical industries.
