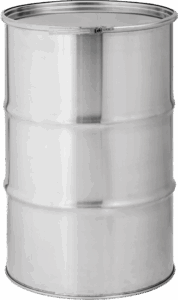

Stainless Steel Open Head Crevice Free Drum

Home / Products / Stainless Steel Open Head Crevice Free Drum

Technical Specifications

Sizes Available:

10L, 20L, 30L, 60L, 100L, 150L, 213L

Available in Grade:

SS304 / SS316

Thickness:

1.00mm (19SWG) & 1.2mm (18SWG)

UN Approved:

Not Applicable

Closures:

Optional 2” and ¾” Trisure closures

Internal Finish:

BA ( Mirror ) / 2B ( mill finish )

External Finish:

Matt

Closure Rings:

Clamp type

Types:

Not Applicable

CAPACITY	GRADE	THICKNESS	HEIGHT	DIAMETER	INTERNAL FINISH	EXTERNAL FINISH	CLOSURES (OPTIONAL)	HANDLES
10L	SS304 / SS316	1.0MM	210MM	305MM	2B / BA	MATT	2″ & 3/4″	TOP/ SIDE HANDLE
20L	SS304 / SS316	1.0MM	350MM	305MM	2B / BA	MATT	2″ & 3/4″	TOP/ SIDE HANDLE
30L	SS304 / SS316	1.0MM	510MM	305MM	2B / BA	MATT	2″ & 3/4″	TOP/ SIDE HANDLE
60L	SS304 / SS316	1.0MM	600MM	405MM	2B / BA	MATT	2″ & 3/4″	TOP/ SIDE HANDLE
100L	SS304 / SS316	1.0MM	700MM	455MM	2B / BA	MATT	2″ & 3/4″	SIDE HANDLES
120L	SS304 / SS316	1.0MM	800MM	455MM	2B / BA	MATT	2″ & 3/4″	ON REQUEST
150L	SS304 / SS316	1.2MM	700MM	580MM	2B / BA	MATT	2″ & 3/4″	ON REQUEST
213L	SS304 / SS316	1.2MM	890MM	580MM	2B / BA	MATT	2″ & 3/4″	NOT AVAILABLE

Applications

Manufacturing Technology

Enhanced hygiene due to the crevice-free design and stainless steel construction, reducing the risk of contamination and ensuring compliance with stringent regulatory standards.
Corrosion resistance, durability, and strength.
Versatility for use in various industries.
Shell Welded Using Plasma Weld Technology, Free from any Residue Particles.
Welded Bottom Enables the Drum to be Thoroughly cleaned to Sterile Conditions
Suitable for applications inlcuding the pharmaceutical, food, speciality chemical and toxic chemical industries specially for mixing batches and storage as per GPM norms.
